Geometrics::GmBufferedSensor Class Reference

The class from which event sources and sensors that post events to the application's main event queue are derived. More...

#include <GmBufferedSensor.hpp>

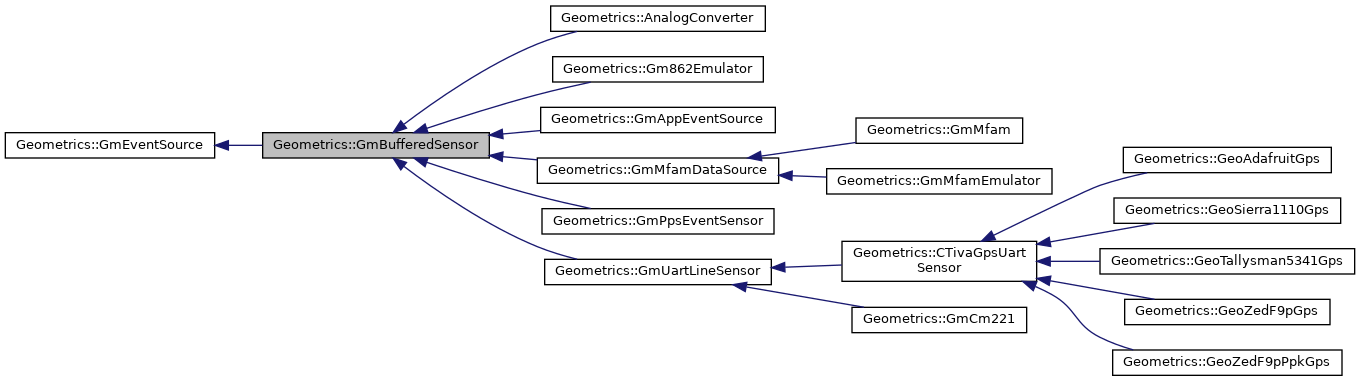

Inheritance diagram for Geometrics::GmBufferedSensor:

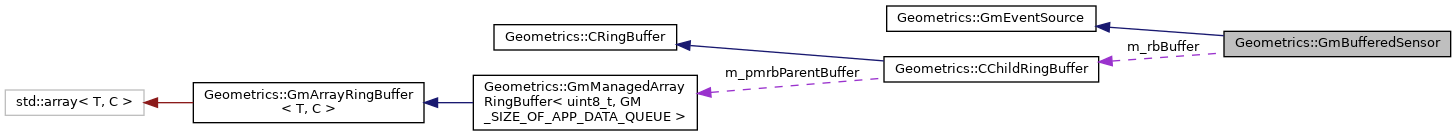

Collaboration diagram for Geometrics::GmBufferedSensor:

Public Member Functions
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More...
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More...
int	Start ()
int	ResetBuffers ()
Bool	HasData ()
int	ReadRecord (char *pcDestination, int iSize)
	The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord)
virtual int	DeleteNextRecord ()
	DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns.
Public Member Functions inherited from Geometrics::GmEventSource
virtual int	WriteToStorage (UInt32 ui32Topic, char *pData, UInt32 iSize, GmStorage *psStorage, UInt32 ui32FormatId)=0
void	SetSensorId (int iSensorId)
int	GetSensorId ()

Public Attributes
CChildRingBuffer *	m_rbBuffer
	The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord.
UInt8	m_iSubjectId

Additional Inherited Members
Protected Attributes inherited from Geometrics::GmEventSource
int	m_iSensorId

Detailed Description

The class from which event sources and sensors that post events to the application's main event queue are derived.

Constructor & Destructor Documentation

GmBufferedSensor() [1/2]

GmBufferedSensor::GmBufferedSensor	(	UInt8	iSubjectId,
		int	iRingCount,
		int	iDataSize,
		GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *	mainEventQueue
	)

Constructor for derived classes, when it's OK to allocate a local buffer dynamically.

Parameters

iSubjectId	ID to be placed into the main event queue.
iRingCount	Max number of data items to be placed in buffer
iDataSize	Size of local data item
mainEventQueue	The main application event queue. When this sensor stores an item locally, it places its event ID (iSubjectId) into the main event queue. This pointer is not recorded here in the sensor, but is set given to the local buffer when it is set up, to that commits to the local buffer also include putting the eventID into the main event queue.

GmBufferedSensor() [2/2]

GmBufferedSensor::GmBufferedSensor	(	UInt8	iSubjectId,
		int	iRingCount,
		int	iDataSize,
		UInt8 *	puiBuffer,
		UInt32	uiBufferSize,
		GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *	mainEventQueue
	)

Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically.

Parameters

iSubjectId	ID to be placed into the main event queue.
iRingCount	Max number of data items to be placed in buffer
iDataSize	Size of local data item
puiBuffer	Existing (usually static) buffer to be used by sensor.
uiBufferSize	Total size of buffer
mainEventQueue	The main application event queue. When this sensor stores an item locally, it places its event ID (iSubjectId) into the main event queue. This pointer is not recorded here in the sensor, but is set given to the local buffer when it is set up, to that commits to the local buffer also include putting the eventID into the main event queue.

---

The documentation for this class was generated from the following files:

• /home/kddev/dev/AppDev/GmCommon/include/GmBufferedSensor.hpp
• /home/kddev/dev/AppDev/GmCommon/GmEventSource/GmBufferedSensor.cpp
