Geometrics::GmPpsEventSensor Class Reference

Inheritance diagram for Geometrics::GmPpsEventSensor:

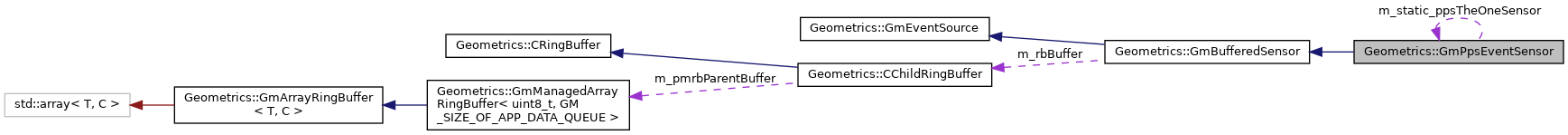

Collaboration diagram for Geometrics::GmPpsEventSensor:

Public Member Functions
	GmPpsEventSensor (UInt8 iSubjectId, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
int	Initialize (int iBoardPPSPinEnum, ti_sysbios_knl_Swi_Handle iPpsId)
void	ReadDataInternal ()
void	SetPpsCallback (GM_PPS_CallbackFxn callback)
virtual int	WriteToStorage (UInt32 ui32Topic, char *pData, UInt32 iSize, GmStorage *psStorage, UInt32 ui32FormatId)
Public Member Functions inherited from Geometrics::GmBufferedSensor
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More...
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More...
int	Start ()
int	ResetBuffers ()
Bool	HasData ()
int	ReadRecord (char *pcDestination, int iSize)
	The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord)
virtual int	DeleteNextRecord ()
	DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns.
Public Member Functions inherited from Geometrics::GmEventSource
void	SetSensorId (int iSensorId)
int	GetSensorId ()

Static Public Member Functions
static void	InitializingPpsCallback (unsigned int index)
static void	PpsCallbackInternal (unsigned int index)

Public Attributes
uint64_t	m_uiLastCounter
double	m_dSeconds
Public Attributes inherited from Geometrics::GmBufferedSensor
CChildRingBuffer *	m_rbBuffer
	The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord.
UInt8	m_iSubjectId

Static Public Attributes
static int	sPPSPinEnum = -1
static GmPpsEventSensor *	m_static_ppsTheOneSensor = NULL
static ti_sysbios_knl_Swi_Handle	m_iPpsId

Static Protected Attributes
static GM_PPS_CallbackFxn	m_static_callBack = NULL

Additional Inherited Members
Protected Attributes inherited from Geometrics::GmEventSource
int	m_iSensorId

Member Function Documentation

InitializingPpsCallback()

void GmPpsEventSensor::InitializingPpsCallback ( unsigned int  index )

static

During initialization, use this callback. Afterward, switch to the main one. See C code for further information.

Until the system figures out the duty cycle, use this callback for PPS. When the duty cycle is figured out, then switch to the other callback

WriteToStorage()

int GmPpsEventSensor::WriteToStorage ( UInt32  ui32Topic, char *  pData, UInt32  iSize, GmStorage *  psStorage, UInt32  ui32FormatId  )

virtual

Virtual function, abstract in this class, called when a sensor should write its data to a storage or other event handler.

Parameters

ui32Topic	Hint to the storage (MQTT is one) about adding some topic or header information about the data. Not all storages use the hint.
pData	The data to be written.
iSize	Size of the data to be written.
psStorage	Storage or event handler to which the data will be written.
ui32FormatId	Formatting information to be used by the sensor. Within a single application, a sensor might be asked to write different formats to different storages or event handlers. Very likely the per-storage, per-mode information was stored in an instance of Geometrics::SensorStorageModeInfo.

Implements Geometrics::GmEventSource.

---

The documentation for this class was generated from the following files:

• /home/kddev/dev/AppDev/GmCommon/include/GmPpsEvent.hpp
• /home/kddev/dev/AppDev/GmCommon/GmEventSource/GmPpsEvent.cpp
