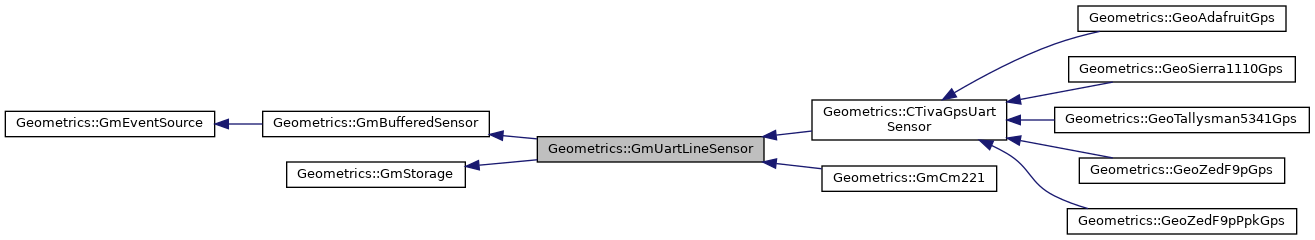

Inheritance diagram for Geometrics::GmUartLineSensor:

[legend]

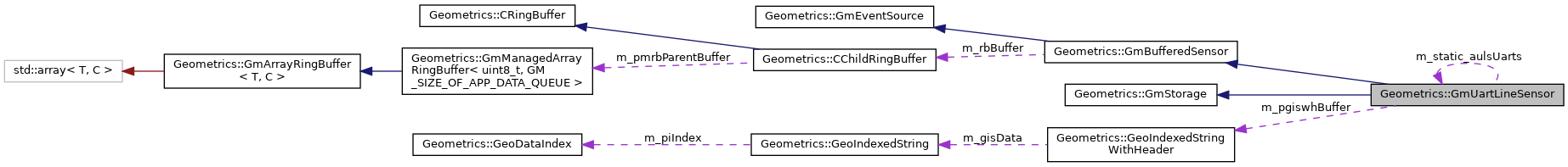

Collaboration diagram for Geometrics::GmUartLineSensor:

[legend]

Public Member Functions
	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)

	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, int iCustomRecordSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)

	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, int iCustomRecordSize, UInt8 puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > mainEventQueue)

virtual int	Initialize (int iBoardID)=0

int	Start ()

Void	UartReadLoop ()

int	WriteData (const char *pcData, unsigned int iDataSize, UInt32 ui32Topic)

Public Member Functions inherited from Geometrics::GmBufferedSensor
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More...

	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > mainEventQueue)
	Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More...

int	Start ()

int	ResetBuffers ()

Bool	HasData ()

int	ReadRecord (char *pcDestination, int iSize)
	The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord)

virtual int	DeleteNextRecord ()
	DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns.

Public Member Functions inherited from Geometrics::GmEventSource
virtual int	WriteToStorage (UInt32 ui32Topic, char pData, UInt32 iSize, GmStorage psStorage, UInt32 ui32FormatId)=0

void	SetSensorId (int iSensorId)

int	GetSensorId ()

Public Member Functions inherited from Geometrics::GmStorage
virtual int	Close (int iFileIndex)

virtual int	EnterTransaction ()

virtual int	LeaveTransaction ()

virtual int	RollAndSynchFile ()

virtual int	SelectSurveyEx (const char *strSurveyId)

virtual int	IsDataStorage ()

virtual int	GetLastError ()

virtual bool	IsOpen ()

void	SetDatasetId (const int iDataset)

int	GetDatasetId (bool increment)

virtual int	Shutdown ()

Static Public Member Functions
static int	InitUarts (int iMaxUarts)

Static Public Member Functions inherited from Geometrics::GmStorage
static int	DecodeDownloadName (const char szDownloadName, char strSurveyId, char strAcquisitionId, char strFileName)

Public Attributes
Bool	m_bPing

Bool	m_bCustomRecord

UART_Handle	m_uhUartHandle

static int	m_static_iMaxUarts = 0

static int	m_static_iNextUart = 0

Public Attributes inherited from Geometrics::GmBufferedSensor
CChildRingBuffer *	m_rbBuffer
	The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord.

UInt8	m_iSubjectId

Static Public Attributes
static GmUartLineSensor **	m_static_aulsUarts = NULL

Static Public Attributes inherited from Geometrics::GmStorage
static int	s_recordsPerFile = BLOCKS_PER_ACQUISITION_DATA_FILE

Protected Member Functions
void	PauseRead ()

void	UnpauseRead ()

virtual Void	OnPreProcessUartString (char *pscString)

virtual int	ConvertToCustomRecord (UInt8 pscUartData, UInt8 pcCustomRecordBuffer)

Protected Attributes
Task_Handle	m_thTask

bool	m_boolInitialized

bool	m_bReadPaused

int	m_iLineLength

int	m_iPrefixLength

int	m_iCustomRecordSize

GeoIndexedStringWithHeader *	m_pgiswhBuffer

int	m_iIndexThisUart

UInt8 *	m_caCustomRecordBuffer

Protected Attributes inherited from Geometrics::GmEventSource
int	m_iSensorId

Protected Attributes inherited from Geometrics::GmStorage
bool	m_bIsOpen

int	m_iCurrentDataSetId

bool	mIncrementDatasetId

The documentation for this class was generated from the following files:

/home/kddev/dev/AppDev/GmCommon/include/GmUartLineSensor.hpp
/home/kddev/dev/AppDev/GmCommon/GmUarts/GmUartLineSensor.cpp
