The MFAM magnetometer sensor. More...
#include <GmMFAMSensor.hpp>
Inheritance diagram for Geometrics::GmMfam:

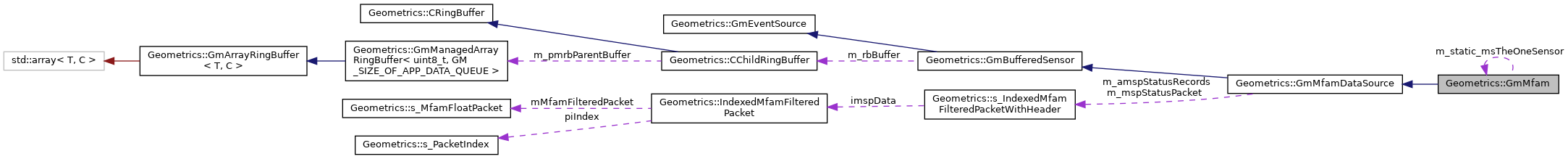

Collaboration diagram for Geometrics::GmMfam:
Public Member Functions | |
| GmMfam (UInt8 iSubjectId, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| int | Initialize (int iSpiId, int enablePinIndex, ti_sysbios_knl_Swi_Handle iSwiId, Bool waitForQuietSpi) |
| virtual void | Halt () |
| virtual int | CheckCalibrate (Bool bForceCalibrate) |
| int | CalibrateSpiBufferError () |
| int | ReadDataForTest () |
| void | ReadDataInternal () |
 Public Member Functions inherited from Geometrics::GmMfamDataSource | |
| GmMfamDataSource (UInt8 iSubjectId, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| int | Start () |
| int | SetSimpleSubsampleRate (int iNewRate) |
| int | ResetBuffers (Bool bForceCalibrate) |
| virtual UInt16 | SystemStatus () |
| virtual int | WriteToStorage (UInt32 ui32Topic, char *pData, UInt32 iSize, GmStorage *psStorage, UInt32 ui32FormatId) |
| Bool | IsSuperMag () |
| Bool | MagOneDataValid () |
| Bool | MagTwoDataValid () |
| Bool | PpsLocked () |
| Bool | PpsAvailable () |
| int | MagOneStartupStatusString (char *strBuffer, int iBufferLength) |
| int | MagTwoStartupStatusString (char *strBuffer, int iBufferLength) |
| int | MagOneOperatingStatusString (char *strBuffer, int iBufferLength) |
| int | MagTwoOperatingStatusString (char *strBuffer, int iBufferLength) |
| int | LastMagOneDataValue (float *pfDataValue) |
| int | LastMagTwoDataValue (float *pfDataValue) |
| UInt16 | MagMainMode () |
| UInt16 | CompassStatus () |
| bool | IsInStartup () |
| Bool | SystemHasStartedUp () |
| Bool | SystemFailed () |
| void | SaveMonitorPacket (IndexedMfamFilteredPacketWithHeader *pMonitorPacket, Bool bFilter) |
| Public Member Functions inherited from Geometrics::GmBufferedSensor | |
| GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More... | |
| GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More... | |
| int | Start () |
| int | ResetBuffers () |
| Bool | HasData () |
| int | ReadRecord (char *pcDestination, int iSize) |
| The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord) | |
| virtual int | DeleteNextRecord () |
| DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns. | |
| Public Member Functions inherited from Geometrics::GmEventSource | |
| void | SetSensorId (int iSensorId) |
| int | GetSensorId () |
Static Public Member Functions | |
| static Void | GmGetMFAMSpiData (SPI_Handle handle, SPI_Transaction *transaction) |
| Static Public Member Functions inherited from Geometrics::GmMfamDataSource | |
| static int | DecodeMagStartupStatus (UInt16 iMagStatus, char *strBuffer, int iBufferLength) |
| static int | DecodeMagOperatingStatus (UInt16 iMagStatus, char *strBuffer, int iBufferLength) |
Public Attributes | |
| enum BufferState | mBufferState |
| Public Attributes inherited from Geometrics::GmMfamDataSource | |
| uint32_t | mQueueFillTopThreshold |
| uint32_t | mQueueFillRestartThreshold |
| Public Attributes inherited from Geometrics::GmBufferedSensor | |
| CChildRingBuffer * | m_rbBuffer |
| The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord. | |
| UInt8 | m_iSubjectId |
Static Public Attributes | |
| static Bool | sMfamIsInStartupTest |
| static MfamTestStates | sMfamPassedTest = MFAM_SYSTEM_DID_NOT_TRY_TO_START |
| static SPI_Handle | m_static_GmSpiHandle |
| static SPI_Params | m_static_GmSpiParams |
| static SPI_Transaction | m_static_RxTxnPing |
| static SPI_Transaction | m_static_RxTxnPong |
| static Bool | m_static_BPing |
| static int | sCompassRetries = 0 |
| static GmMfam * | m_static_msTheOneSensor = NULL |
| Static Public Attributes inherited from Geometrics::GmMfamDataSource | |
| static UInt16 | m_static_iSystemStatus |
Static Protected Member Functions | |
| static void | SetupSpiBuffers (bool isNull) |
| static void | SetupSpiParameters (SPI_TransferMode tMode, Bool IsNull) |
Static Protected Attributes | |
| static Bool | m_static_pps_rx |
| Static Protected Attributes inherited from Geometrics::GmMfamDataSource | |
| static bool | m_static_boolInitialized |
| static int | m_static_iSubsampleCount = 0 |
Additional Inherited Members | |
| Protected Member Functions inherited from Geometrics::GmMfamDataSource | |
| int | RecordStatus (MfamSpiPacket *pmspRecord) |
| Protected Attributes inherited from Geometrics::GmMfamDataSource | |
| IndexedMfamFilteredPacketWithHeader | m_mspStatusPacket |
| int | m_iSimpleSubsampleRate |
| IndexedMfamFilteredPacketWithHeader | m_amspStatusRecords [MAG_SPI_TOTAL_RECORDS] |
| Protected Attributes inherited from Geometrics::GmEventSource | |
| int | m_iSensorId |
Detailed Description
The MFAM magnetometer sensor.
Data from this sensor can be used in individual records, blocks, decimated, etc.
See notes in Geometrics::GmMfamEmulator for information about when to use the emulator (debugging, mostly).
The documentation for this class was generated from the following files:
- /home/kddev/dev/AppDev/GmCommon/include/GmMFAMSensor.hpp
- /home/kddev/dev/AppDev/GmCommon/GmEventSource/GmMFAMSensor.cpp
