Abstract class - the interface - to the MFAM sensor. This abstract layer was created in order to accommodate the creation of two MFAM sensors, one - Geometrics::GmMfam - for acquiring data from the actual physics package, and another - Geometrics::GmMfamEmulator - for use in developing and debugging MFAM-based applications. More...
#include <GmMFAMDataSource.hpp>

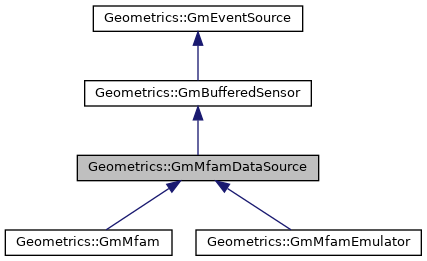

Inheritance diagram for Geometrics::GmMfamDataSource:

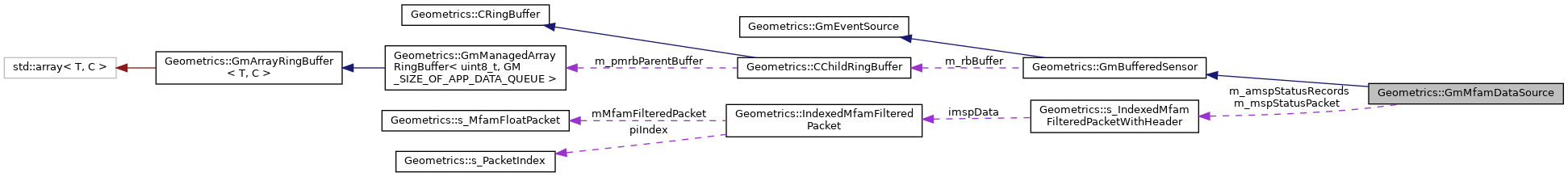

Collaboration diagram for Geometrics::GmMfamDataSource:
Public Member Functions | |
| GmMfamDataSource (UInt8 iSubjectId, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| int | Start () |
| virtual int | CheckCalibrate (Bool bForceCalibrate) |
| int | SetSimpleSubsampleRate (int iNewRate) |
| int | ResetBuffers (Bool bForceCalibrate) |
| virtual UInt16 | SystemStatus () |
| virtual int | WriteToStorage (UInt32 ui32Topic, char *pData, UInt32 iSize, GmStorage *psStorage, UInt32 ui32FormatId) |
| virtual void | Halt ()=0 |
| Bool | IsSuperMag () |
| Bool | MagOneDataValid () |
| Bool | MagTwoDataValid () |
| Bool | PpsLocked () |
| Bool | PpsAvailable () |
| int | MagOneStartupStatusString (char *strBuffer, int iBufferLength) |
| int | MagTwoStartupStatusString (char *strBuffer, int iBufferLength) |
| int | MagOneOperatingStatusString (char *strBuffer, int iBufferLength) |
| int | MagTwoOperatingStatusString (char *strBuffer, int iBufferLength) |
| int | LastMagOneDataValue (float *pfDataValue) |
| int | LastMagTwoDataValue (float *pfDataValue) |
| UInt16 | MagMainMode () |
| UInt16 | CompassStatus () |
| bool | IsInStartup () |
| Bool | SystemHasStartedUp () |
| Bool | SystemFailed () |
| void | SaveMonitorPacket (IndexedMfamFilteredPacketWithHeader *pMonitorPacket, Bool bFilter) |
 Public Member Functions inherited from Geometrics::GmBufferedSensor | |
| GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More... | |
| GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue) | |
| Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More... | |
| int | Start () |
| int | ResetBuffers () |
| Bool | HasData () |
| int | ReadRecord (char *pcDestination, int iSize) |
| The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord) | |
| virtual int | DeleteNextRecord () |
| DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns. | |
| Public Member Functions inherited from Geometrics::GmEventSource | |
| void | SetSensorId (int iSensorId) |
| int | GetSensorId () |
Public Attributes | |
| uint32_t | mQueueFillTopThreshold |
| uint32_t | mQueueFillRestartThreshold |
| Public Attributes inherited from Geometrics::GmBufferedSensor | |
| CChildRingBuffer * | m_rbBuffer |
| The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord. | |
| UInt8 | m_iSubjectId |
Static Public Attributes | |
| static UInt16 | m_static_iSystemStatus |
Protected Member Functions | |
| int | RecordStatus (MfamSpiPacket *pmspRecord) |
Protected Attributes | |
| IndexedMfamFilteredPacketWithHeader | m_mspStatusPacket |
| int | m_iSimpleSubsampleRate |
| IndexedMfamFilteredPacketWithHeader | m_amspStatusRecords [MAG_SPI_TOTAL_RECORDS] |
| Protected Attributes inherited from Geometrics::GmEventSource | |
| int | m_iSensorId |
Static Protected Attributes | |
| static bool | m_static_boolInitialized |
| static int | m_static_iSubsampleCount = 0 |
Detailed Description
Abstract class - the interface - to the MFAM sensor. This abstract layer was created in order to accommodate the creation of two MFAM sensors, one - Geometrics::GmMfam - for acquiring data from the actual physics package, and another - Geometrics::GmMfamEmulator - for use in developing and debugging MFAM-based applications.
Member Function Documentation
◆ WriteToStorage()
|
virtual |
Virtual function, abstract in this class, called when a sensor should write its data to a storage or other event handler.
- Parameters
-
ui32Topic Hint to the storage (MQTT is one) about adding some topic or header information about the data. Not all storages use the hint. pData The data to be written. iSize Size of the data to be written. psStorage Storage or event handler to which the data will be written. ui32FormatId Formatting information to be used by the sensor. Within a single application, a sensor might be asked to write different formats to different storages or event handlers. Very likely the per-storage, per-mode information was stored in an instance of Geometrics::SensorStorageModeInfo.
Implements Geometrics::GmEventSource.
The documentation for this class was generated from the following files:
- /home/kddev/dev/AppDev/GmCommon/include/GmMFAMDataSource.hpp
- /home/kddev/dev/AppDev/GmCommon/GmEventSource/GmMFAMDataSource.cpp
