Geometrics::GmCm221 Class Reference

The sensor class for the traditional cesium mags used by the G-864. More...

#include <GmCm221.hpp>

Inheritance diagram for Geometrics::GmCm221:

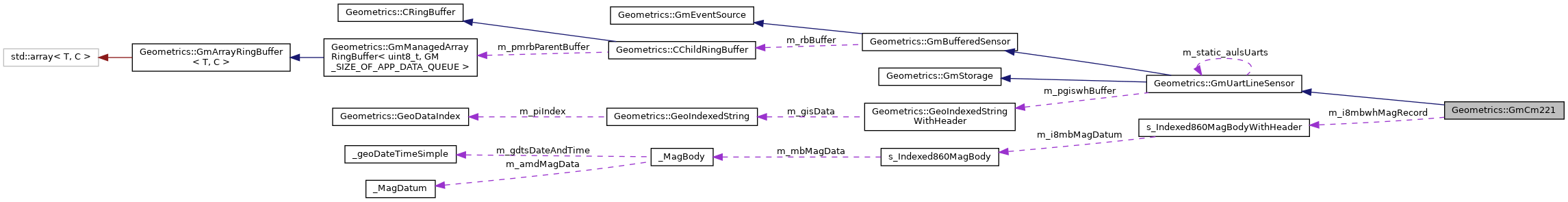

Collaboration diagram for Geometrics::GmCm221:

Public Member Functions
	GmCm221 (UInt8 iSubject, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
int	Initialize (int iBoardID)
virtual Void	OnPreProcessUartString (char *pscString)
virtual int	ConvertToCustomRecord (UInt8 *pscUartData, UInt8 *pcCustomRecordBuffer)
int	Parse860String (char *pc860SerialString, struct _MagBody *pMagDatum)
virtual int	WriteToStorage (UInt32 ui32Topic, char *pData, UInt32 iSize, GmStorage *psStorage, UInt32 ui32FormatId)
void	SetSamplePeriod (unsigned int samplePeriodInMilliseconds)
int	SetCycleTimeMilliseconds (int cycleTimeMilliseconds)
int	RuntimeSetCycleTimeMilliseconds (int cycleTimeMilliseconds)
int	GetCycleTimeMilliseconds ()
int	WriteData (const char *pcData, unsigned int iDataSize, UInt32 ui32Topic)
Public Member Functions inherited from Geometrics::GmUartLineSensor
	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, int iCustomRecordSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	GmUartLineSensor (UInt8 iSubject, int iLineLength, int iMaxBuffered, int iCustomRecordSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
int	Start ()
Void	UartReadLoop ()
int	WriteData (const char *pcData, unsigned int iDataSize, UInt32 ui32Topic)
Public Member Functions inherited from Geometrics::GmBufferedSensor
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor for derived classes, when it's OK to allocate a local buffer dynamically. More...
	GmBufferedSensor (UInt8 iSubjectId, int iRingCount, int iDataSize, UInt8 *puiBuffer, UInt32 uiBufferSize, GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *mainEventQueue)
	Constructor used by most derived classes on memory-constrained systems. In this case the derived class provides a buffer, usually static, so that the buffer doesn't need to be allocated dynamically. More...
int	Start ()
int	ResetBuffers ()
Bool	HasData ()
int	ReadRecord (char *pcDestination, int iSize)
	The main interface for consumers of a sensors data to get that data. It simply copies the data in the sensor's buffer into the caller's buffer. It is up to the caller to know what to do with that data, and how to free any local memory. (This function should have been name ReadNextRecord)
virtual int	DeleteNextRecord ()
	DeleteNextRecord allows a caller to discard the next record without retrieving it. The subclasses that implement DeleteNextRecord must be able to deal with any memory that needs to be freed, or other such concerns.
Public Member Functions inherited from Geometrics::GmEventSource
void	SetSensorId (int iSensorId)
int	GetSensorId ()
Public Member Functions inherited from Geometrics::GmStorage
virtual int	Close (int iFileIndex)
virtual int	EnterTransaction ()
virtual int	LeaveTransaction ()
virtual int	RollAndSynchFile ()
virtual int	SelectSurveyEx (const char *strSurveyId)
virtual int	IsDataStorage ()
virtual int	GetLastError ()
virtual bool	IsOpen ()
void	SetDatasetId (const int iDataset)
int	GetDatasetId (bool increment)
virtual int	Shutdown ()

Public Attributes
int	m_iCycleTimeMilliseconds
struct s_Indexed860MagBodyWithHeader	m_i8mbwhMagRecord
Public Attributes inherited from Geometrics::GmUartLineSensor
Bool	m_bPing
Bool	m_bCustomRecord
UART_Handle	m_uhUartHandle
static int	m_static_iMaxUarts = 0
static int	m_static_iNextUart = 0
Public Attributes inherited from Geometrics::GmBufferedSensor
CChildRingBuffer *	m_rbBuffer
	The local buffer into which the sensor or event source stores each of its events or measurements. When an item is committed to this buffer, it also adds an event (consisting of the sensor's subject ID) into the application main event queue. The full event or measurement remains here, until the application reads the subject ID out of the main queue and then asks this sensor object for the full information by calling ReadRecord.
UInt8	m_iSubjectId

Protected Member Functions
int	InitBaudRate ()
int	AutoBaud (int *baudRateResult)
int	SendCommand (const char *command)
int	SendRuntimeCommand (const char *command)
Protected Member Functions inherited from Geometrics::GmUartLineSensor
void	PauseRead ()
void	UnpauseRead ()

Protected Attributes
int	m_iBoardId
UART_Params *	m_pUartParams
Protected Attributes inherited from Geometrics::GmUartLineSensor
Task_Handle	m_thTask
bool	m_boolInitialized
bool	m_bReadPaused
int	m_iLineLength
int	m_iPrefixLength
int	m_iCustomRecordSize
GeoIndexedStringWithHeader *	m_pgiswhBuffer
int	m_iIndexThisUart
UInt8 *	m_caCustomRecordBuffer
Protected Attributes inherited from Geometrics::GmEventSource
int	m_iSensorId
Protected Attributes inherited from Geometrics::GmStorage
bool	m_bIsOpen
int	m_iCurrentDataSetId
bool	mIncrementDatasetId

Additional Inherited Members
Static Public Member Functions inherited from Geometrics::GmUartLineSensor
static int	InitUarts (int iMaxUarts)
Static Public Member Functions inherited from Geometrics::GmStorage
static int	DecodeDownloadName (const char *szDownloadName, char *strSurveyId, char *strAcquisitionId, char *strFileName)
Static Public Attributes inherited from Geometrics::GmUartLineSensor
static GmUartLineSensor **	m_static_aulsUarts = NULL
Static Public Attributes inherited from Geometrics::GmStorage
static int	s_recordsPerFile = BLOCKS_PER_ACQUISITION_DATA_FILE

Detailed Description

The sensor class for the traditional cesium mags used by the G-864.

A note about timing and record counters for the G-864 magnetometer: Each record in the acquisition - mag, gps, pps, events, etc. - is placed in the database in order in relation to all the other records by a dataset and a counter. The dataset is ID of the set of records between any particular start and stop of acquisition, and the counter is simply a count of the magnetometer readings since the instrument was powered on. The counter may not be unique in a survey - the system might have been powered on multiple times over a few days, each time resetting the timer - but because the dataset is unique, the index of dataset+timer will be unique.

These counters are used to match times and locations of records with each other. A GPS time and location should be associated with the correct mag reading. When the PPS is available, the counters and timing work like this: The magnetometer is acquiring at a certain sample rate f samples / second, and a certain sample period p = 1/f When the instrument requests a data point from the mag (by sending a '$' to the mag), the mag provides the accumuluated measurement from the last period, and starts collecting data for the next period. When the PPS and GPS are available, in order to match the PPS as closely as possible with the magnetometer readings, the '$' requests to the sensor are offset by 1/2 of the period p. That is, a '$' is sent at p/2 BEFORE the PPS arrives, then another one at p/2 after, then at 3p/2, 5p/2, etc. This way, the '$' sent at p/2 AFTER the PPS retrieves the data that the sensor started collecting at p/2 BEFORE the PPS, i.e. the measurement that was averaged over the period centering on the PPS. To align these records correctly in later data processing, counters are assigned as follows, using a system counter

• mag records: When the mag record is received, it is given the current value in the system counter.
• then, the system counter is incremented by 1
• pps - Arriving p/2 after the last mag record, it is assigned the current value in the system counter, which having been incremented, will point to the next record.

• gps - It will arrive sometime after the PPS and will be assigned whatever the current value of the system counter is. During data processing, the GPS record can be matched with the PPS by fields other than the counter, so the GPS's counter is not very important. events - Assigned the current value of the counter when the event occurs. This includes start and stop events. The code to manage the global counter is in several files: search for 'g_uiGlobalMasterSampleCounter'

  During GPS-based surveys without PPS, records are given timestamps by the instrument, and it's the business of the analysis or reporting software to decide what to do with those timestamps. This corresponds to the behavior of the legacy mags, which did not report a PPS.

Member Function Documentation

WriteToStorage()

int GmCm221::WriteToStorage ( UInt32  ui32Topic, char *  pData, UInt32  iSize, GmStorage *  psStorage, UInt32  ui32FormatId  )

virtual

Virtual function, abstract in this class, called when a sensor should write its data to a storage or other event handler.

Parameters

ui32Topic	Hint to the storage (MQTT is one) about adding some topic or header information about the data. Not all storages use the hint.
pData	The data to be written.
iSize	Size of the data to be written.
psStorage	Storage or event handler to which the data will be written.
ui32FormatId	Formatting information to be used by the sensor. Within a single application, a sensor might be asked to write different formats to different storages or event handlers. Very likely the per-storage, per-mode information was stored in an instance of Geometrics::SensorStorageModeInfo.

Implements Geometrics::GmEventSource.

---

The documentation for this class was generated from the following files:

• /home/kddev/dev/AppDev/GmCommon/include/GmCm221.hpp
• /home/kddev/dev/AppDev/GmCommon/GmUarts/GmCm221.cpp
