Direct base class for Tezzeret applications. Includes the main event queue, general command logic, and support for some of the basic event types and sources, in particular Geometrics::GmAppEvent. More...

#include <GmLoggingApp.hpp>

Inheritance diagram for Geometrics::GmLoggingApp:

[legend]

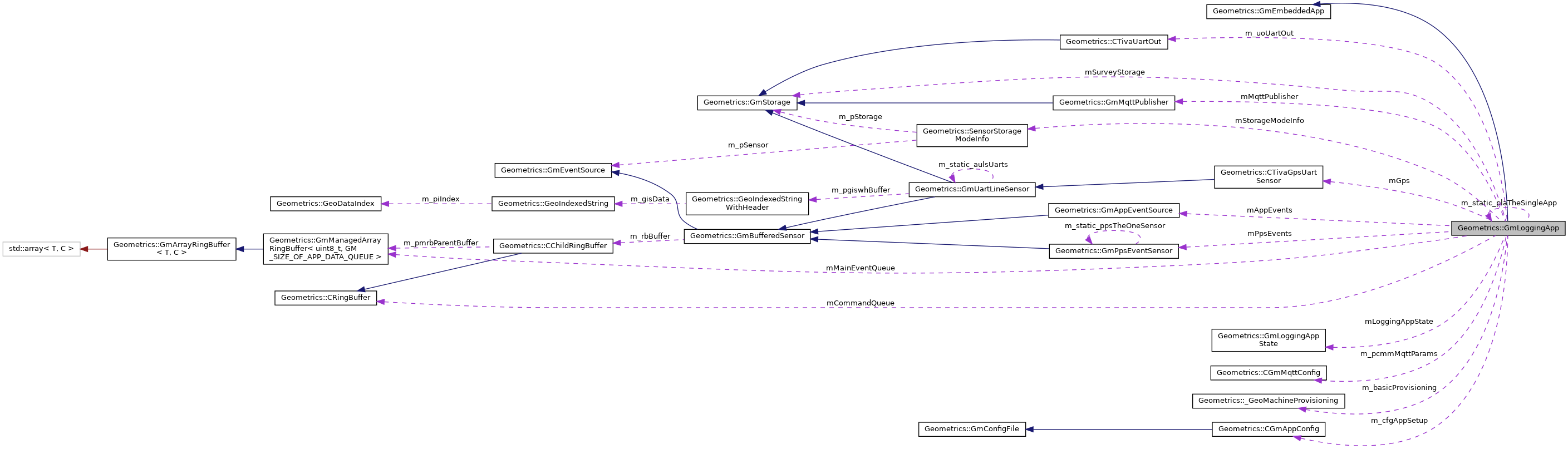

Collaboration diagram for Geometrics::GmLoggingApp:

[legend]

Public Member Functions
	GmLoggingApp (Semaphore_Handle shCommandAvailable, Semaphore_Handle shCommandQueueAvailable, Semaphore_Handle appEventsAvailable, GmLoggingAppState *loggingAppState)
	Constructor, called only in the context of the constructor for the final application class. More...

virtual int	Initialize ()

void	MainLoop ()

int	SetupAppQueues ()

void	DequeueCommands ()

int	QueueCommand (UInt32 iCommand, UInt8 commandSource, UInt8 *pui8AddedInfo, UInt32 uiAddedInfoSize)

int	HandleMqttSynchCommand (int messageId, char *strTmp)

virtual UInt32	ProcessCommand (UInt32 iCommand, UInt8 commandSource, UInt8 *pui8AddedInfo, UInt32 uiAddedInfoSize)

int	ListSurveys (GmSessionNames *psnSessions)

int	SetHostSyncTimes (int64_t hostTimeInMilliseconds, int64_t thisTimeInMilliseconds)

Bool	LogToFile ()

Bool	LogToSerial ()

double	OnPps (Seconds_Time *timestamp)

int	SetApproximateTimeInfo (double dSeconds)

virtual GmLoggingAppState *	GetLoggingAppState ()=0

CGmAppConfig *	GetConfigInfo ()

GmRingBufferFileStorage *	GetStorage ()

int	StartLogAnnotation ()

void	EndLogAnnotation ()

int	LogUnindexedAppEvent (GmAppEvent appEvent, const char strTextData, int loggingMode)

Int	RequestDeleteSegment (const int messageId, char *commandJson)

Int	MarkTarget (const int messageId, char *commandJson)

Int	RequestSynch (const int messageId)

int	SelectAcquisition (const int messageId, char *commandJson)

int	SendMqttOKMessage (const int messageId)

int	SendMqttSynchResponseMessage (const int messageId, const char *message)

int	MqttSendDataFileSynch (const int messageId, char *commandJson)

struct _GeoMachineProvisioning *	GetBasicProvisioning ()

int	AddEvent (UInt32 uiEventCode, UInt32 uiEventInfo, UInt32 uiDataLength, char *caData)

Public Attributes
Bool	m_bPendingSecondRecord

int	m_iPendingMode

double	m_dTimeAtNextSecond

int64_t	mHostTimeAtSyncInMilliseconds

int64_t	mThisTimeAtSyncInMilliseconds

bool	mHostTimeSynced

CTivaGpsUartSensor *	mGps

GmMqttPublisher *	mMqttPublisher

CGmMqttConfig *	m_pcmmMqttParams

Static Public Attributes
static GmLoggingApp *	m_static_plaTheSingleApp = NULL

Static Public Attributes inherited from Geometrics::GmEmbeddedApp
static char	s_ApplicationName [MAX_APPLICATION_NAME_LN+1]

static char	s_ApplicationVersionString [MAX_APPLICATION_VERSION_STRING_LN+1]

static char	s_MachineSerialNumber [MAX_APPLICATION_MACHINE_SERIAL_NUMBER_STRING_LN+1]

Protected Member Functions
UInt32	StartLogging ()

UInt32	StopLogging ()

UInt32	SetFileLogging (Bool bSet)

UInt32	SetMqttLogging (Bool bSet)

UInt32	SetTextMode ()

UInt32	SetBinaryMode ()

uint32_t	DisconnectKeepLogging ()

uint32_t	ReconnectKeepLogging ()

virtual UInt32	CheckCommandContext (UInt32 iCommand)
	When a command is presented to the application, the application needs to check whether the event is legal in the current context. This is a guard-rail function: the application shouldn't create events that don't make sense in a particular context, but Tezzeret is a distributed application, running in at least 2 different devices at one time (the embedded device and a separate UI device such as a tablet or browser), and sometimes things get out of sync.

virtual UInt32	FlushInputQueue ()=0

int	PrepLogSession ()

int	StartSerialPort (int iUartPortEnum)

void	StopLogSession ()

int	SetupSDStorage (int iSpiEnum, UInt32 uiBitRate)

int	SetupUsbStorage (int iUsbEnum)

int	AddStorageSensorMode (int iStorageMode, GmEventSource pSensor, GmStorage pStorage, UInt32 iFormat, UInt32 iTopic, UInt32 iDownsampleRate, UInt32 iOtherInfo)
	AddStorageSensorMode : Record the system's intention to handle (usuall to store or send) event and sensor information when in a particular mode. More...

SensorStorageModeInfo *	GetModeSensorLoggingInfo (GmEventSource *psSensor, int iStorageMode)

int	WriteSensorToStorageList (GmEventSource psSensor, SensorStorageModeInfo ssmiStorageList[], char pData, UInt32 iSize)

int	WriteSensorToStorageList (GmEventSource psSensor, SensorStorageModeInfo ssmiStorageList[], char pData, UInt32 iSize, std::function< Bool(SensorStorageModeInfo *pInfo)> storageFilter)

void	SetSensorId (GmEventSource *psSensor)

Protected Attributes
GmLoggingAppState *	mLoggingAppState = nullptr
	State information about the application at this level (Geometrics::GmLoggingApp); This state is normally part of a derived application state that also includes state about the final application.

GmStorage *	mSurveyStorage
	At any particular time, the application has no more than one main local storage, into which survey data is being stored.

GmPpsEventSensor *	mPpsEvents

GmAppEventSource *	mAppEvents
	Every application include AppEvents, which can include such generic functionality as start/stop, as well as any other events that are useful to the application.

CTivaUartOut *	m_uoUartOut

CRingBuffer *	mCommandQueue

GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > *	mMainEventQueue
	This is the queue through which almost all events and data in a Tezzeret application pass. When a sensor reads a datum, it places its ID (the sensor's ID) into this queue, from which it is eventually read and handled by the application.

CGmAppConfig *	m_cfgAppSetup

struct _GeoMachineProvisioning	m_basicProvisioning

Semaphore_Handle	m_shCommandAvailable

Semaphore_Handle	m_shCommandQueueAvailable

Semaphore_Handle	mAppEventsAvailable

int	m_iCountSensorIds

Static Protected Attributes
static SensorStorageModeInfo	mStorageModeInfo [GEO_MAX_APP_STORAGE_MODES][GEO_MAX_APP_SENSORS][GEO_MAX_APP_STORAGES]
	A list of storages x sensors x modes. "Mode" is an application-specific state; Tezzeret isn't really designed as a state machine, but if it were then mode would be the state. Various modes encapsulate such ideas as "dormant mode", "log everything mode", "monitor mode", etc. More...

Additional Inherited Members
Static Public Member Functions inherited from Geometrics::GmEmbeddedApp
static char *	GetApplicationName ()

static Bool	GetApplicationShortName (char *buffer, int bufferSize)

static Bool	GetApplicationLongName (char *buffer, int bufferSize)

static Bool	GetApplicationVersionString (char *buffer, int bufferSize)

static Bool	GetMachineSerialNumber (char *buffer, int bufferSize)

static Bool	CompareVersionStrings (char nameOne, char nameTwo)

Detailed Description

Direct base class for Tezzeret applications. Includes the main event queue, general command logic, and support for some of the basic event types and sources, in particular Geometrics::GmAppEvent.

Constructor & Destructor Documentation

◆ GmLoggingApp()

GmLoggingApp::GmLoggingApp	(	Semaphore_Handle	shCommandAvailable,
		Semaphore_Handle	shCommandQueueAvailable,
		Semaphore_Handle	appEventsAvailable,
		GmLoggingAppState *	loggingAppState
	)

Constructor, called only in the context of the constructor for the final application class.

Parameters

semaphores	Various semaphores; see sources for synchronizing queues
loggingAppState	The final application class has a state object that's derived from GmLoggingAppState. That object exists in the main object, but not here, so it needs to be passed in from the final object. It's OK to do it in this context.

Member Function Documentation

◆ AddStorageSensorMode()

int GmLoggingApp::AddStorageSensorMode	(	int	iStorageMode,
		GmEventSource *	pSensor,
		GmStorage *	pStorage,
		UInt32	iFormat,
		UInt32	iTopic,
		UInt32	iDownsampleRate,
		UInt32	iOtherInfo
	)

protected

AddStorageSensorMode : Record the system's intention to handle (usuall to store or send) event and sensor information when in a particular mode.

Parameters

iStorageMode	An application value, indicating monitorMode, writeToFiles, standby, etc.
pSensor	- The sensor to which this configuration applies.
pStorage	- The storage to which this configuration applies.
iFormat	- How to write the data. This is a code specific to the sensor, and may inlude text v binary, version, whether or not to include header information, etc. The receiver of this data must be able to decode the data.
iTopic	- Used by storage such as MQTT, to add a header or other information for routing or other purposes.
iDownsampleRate	- In some modes the target storage may not want to get all of the data.
iOtherInfo	- Other information of use to the sensor or storage.

Member Data Documentation

◆ mStorageModeInfo

SensorStorageModeInfo GmLoggingApp::mStorageModeInfo

staticprotected

A list of storages x sensors x modes. "Mode" is an application-specific state; Tezzeret isn't really designed as a state machine, but if it were then mode would be the state. Various modes encapsulate such ideas as "dormant mode", "log everything mode", "monitor mode", etc.

This structure associates event source<==>handler interactions; in a particular mode, the data from a particular event source or sensor will be handled a certain way.

These relations are set up in the final application. In Geometrics::TezzeretApp, each application has its own setup function: Geometrics::TezzeretApp::SetupMagArrowLoggingModes, etc.

The documentation for this class was generated from the following files:

/home/kddev/dev/AppDev/GmCommon/include/GmLoggingApp.hpp
/home/kddev/dev/AppDev/GmCommon/GmApp/GmLoggingApp.cpp
