The top-level application object. It is a singleton, and a Tezzeret application runs in this object's functions. As the top-level object it is allowed to know about any other object in the system. Some of the important information about the application is coded in the immediate base class, Geometrics::GmLoggingApp. More...
#include <TezzeretApp.hpp>
Inheritance diagram for Geometrics::TezzeretApp:

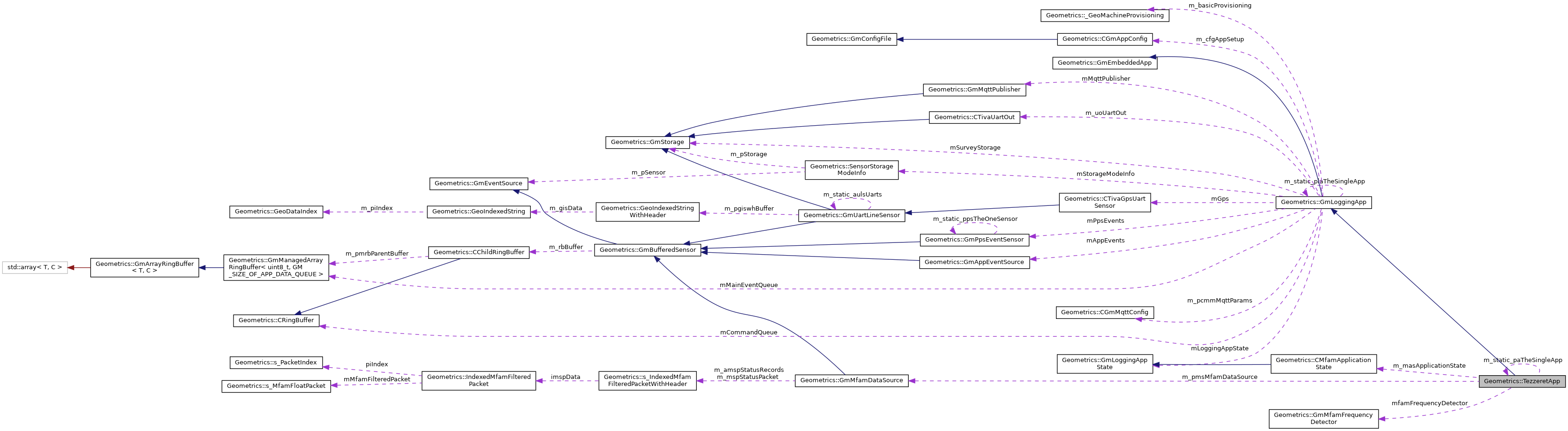

Collaboration diagram for Geometrics::TezzeretApp:
Public Member Functions | |
| TezzeretApp () | |
| Constructor. | |
| void | Start () |
| Start the application. This function simply calls TezzeretApp::MainStartup and then starts reading the event queue. | |
| UInt16 | MfamSystemStatus () |
| CMfamApplicationState * | GetState () |
| void | NetworkSetupCountdown (bool starting) |
| Called during various network startup hooks - link and ipAddress - and at the end of general application startup. When the count of an internal register reaches zero, posts an event to the event queue, which will cause EthernetSetups() to be called. See EthernetStartup. | |
| virtual UInt32 | ProcessCommand (UInt32 iCommand, UInt8 commandSource, UInt8 *pui8AddedInfo, UInt32 uiAddedInfoSize) |
| ProcessCommand implements command processing specialized to this application. "Core" commands are implemented in the Use this function carefully; it should be used rarely. | |
| int | AddEvent (UInt32 uiEventCode, UInt32 uiEventInfo, UInt32 uiDataLength, char *caData) |
| Utility function for adding an event to the main event queue. This is a very broadly useful facility - events are logged into storages by default, and placing an event into the queue can be used to schedule some action later on, to be taken when the event is read from the queue; e.g. starting and stopping acquisition uses both of these aspects of AddEvent. | |
| virtual GmLoggingAppState * | GetLoggingAppState () |
| Get the object that describes the state of the immediate base class for this object. | |
| virtual UInt32 | FlushInputQueue () |
| Event handlers and storage are called from this function, which is called from the main loop when the main event queue has queued data to be handled. Adding a new event source usually involves adding new cases to this function. | |
 Public Member Functions inherited from Geometrics::GmLoggingApp | |
| GmLoggingApp (Semaphore_Handle shCommandAvailable, Semaphore_Handle shCommandQueueAvailable, Semaphore_Handle appEventsAvailable, GmLoggingAppState *loggingAppState) | |
| Constructor, called only in the context of the constructor for the final application class. More... | |
| virtual int | Initialize () |
| void | MainLoop () |
| int | SetupAppQueues () |
| void | DequeueCommands () |
| int | QueueCommand (UInt32 iCommand, UInt8 commandSource, UInt8 *pui8AddedInfo, UInt32 uiAddedInfoSize) |
| int | HandleMqttSynchCommand (int messageId, char *strTmp) |
| int | ListSurveys (GmSessionNames *psnSessions) |
| int | SetHostSyncTimes (int64_t hostTimeInMilliseconds, int64_t thisTimeInMilliseconds) |
| Bool | LogToFile () |
| Bool | LogToSerial () |
| double | OnPps (Seconds_Time *timestamp) |
| int | SetApproximateTimeInfo (double dSeconds) |
| CGmAppConfig * | GetConfigInfo () |
| GmRingBufferFileStorage * | GetStorage () |
| int | StartLogAnnotation () |
| void | EndLogAnnotation () |
| int | LogUnindexedAppEvent (GmAppEvent *appEvent, const char *strTextData, int loggingMode) |
| Int | RequestDeleteSegment (const int messageId, char *commandJson) |
| Int | MarkTarget (const int messageId, char *commandJson) |
| Int | RequestSynch (const int messageId) |
| int | SelectAcquisition (const int messageId, char *commandJson) |
| int | SendMqttOKMessage (const int messageId) |
| int | SendMqttSynchResponseMessage (const int messageId, const char *message) |
| int | MqttSendDataFileSynch (const int messageId, char *commandJson) |
| struct _GeoMachineProvisioning * | GetBasicProvisioning () |
| int | AddEvent (UInt32 uiEventCode, UInt32 uiEventInfo, UInt32 uiDataLength, char *caData) |
Static Public Member Functions | |
| static void | SystemStartup () |
| Most startup logic belongs here; called once during system startup. | |
| static int | Provision (struct _GeoMachineProvisioning *pBasicProvisioning) |
| static double | OnMfamPps (unsigned int index) |
| Static Public Member Functions inherited from Geometrics::GmEmbeddedApp | |
| static char * | GetApplicationName () |
| static Bool | GetApplicationShortName (char *buffer, int bufferSize) |
| static Bool | GetApplicationLongName (char *buffer, int bufferSize) |
| static Bool | GetApplicationVersionString (char *buffer, int bufferSize) |
| static Bool | GetMachineSerialNumber (char *buffer, int bufferSize) |
| static Bool | CompareVersionStrings (char *nameOne, char *nameTwo) |
Public Attributes | |
| CMfamApplicationState | m_masApplicationState |
| GmMfamDataSource * | m_pmsMfamDataSource |
| GmMfamFrequencyDetector * | mfamFrequencyDetector |
| volatile bool | mStartedCache |
| volatile int | mPacketsInCache |
| uint64_t | mFirstIndexInCache |
| bool | mHasDestination |
| double | mDestinationLatitude |
| double | mDestinationLongitude |
| int | mDestinationIndex |
| I2C_Handle | mOffboardI2cHandle |
| I2C_Params | mOffboardI2cParams |
| Public Attributes inherited from Geometrics::GmLoggingApp | |
| Bool | m_bPendingSecondRecord |
| int | m_iPendingMode |
| double | m_dTimeAtNextSecond |
| int64_t | mHostTimeAtSyncInMilliseconds |
| int64_t | mThisTimeAtSyncInMilliseconds |
| bool | mHostTimeSynced |
| CTivaGpsUartSensor * | mGps |
| GmMqttPublisher * | mMqttPublisher |
| CGmMqttConfig * | m_pcmmMqttParams |
Static Public Attributes | |
| static TezzeretApp * | m_static_paTheSingleApp = NULL |
| TezzeretApp is a singleton. | |
| static char | acWebInfoStr [200] |
| Static Public Attributes inherited from Geometrics::GmLoggingApp | |
| static GmLoggingApp * | m_static_plaTheSingleApp = NULL |
| Static Public Attributes inherited from Geometrics::GmEmbeddedApp | |
| static char | s_ApplicationName [MAX_APPLICATION_NAME_LN+1] |
| static char | s_ApplicationVersionString [MAX_APPLICATION_VERSION_STRING_LN+1] |
| static char | s_MachineSerialNumber [MAX_APPLICATION_MACHINE_SERIAL_NUMBER_STRING_LN+1] |
Protected Member Functions | |
Startup | |
Several functions called during application startup. | |
| int | MainStartup () |
| Calls all the other startup functions. | |
| void | EarlyStartupRequirements () |
| A few components need to be started before anything else. | |
| void | StartSensors () |
| Sensor startups. Add a new function for the specific sensor or event source, and then call it from this function. | |
| void | StartMonitors () |
| Start monitors. Add startup logic here for new monitors. | |
| void | StartStorages () |
| Storage startups. Add startup and verification logic for storage - network, SD/USB, and other event consumers - in a separate function for each new consumer, and then call it from this function. | |
Ethernet-hook events | |
Network functionality called after core Ethernet starts or stops | |
| void | EthernetSetups () |
| Set up ethernet - daemons, file descriptors, etc. -, after having gotten notice of link, IPaddress, and application-ready. This must be called in main thread context. Called only in ethernet-based applications. | |
| void | EthernetShutdown () |
Caching | |
Some applications write data in block or arrays. Used only by applications that turn on GEO_WRITE_MFAM_BLOCKS | |
| int | CacheMagData () |
| void | EmptyMfamCache () |
| Bool | MfamCacheIsFull () |
| int | WriteMfamCache () |
| Protected Member Functions inherited from Geometrics::GmLoggingApp | |
| UInt32 | StartLogging () |
| UInt32 | StopLogging () |
| UInt32 | SetFileLogging (Bool bSet) |
| UInt32 | SetMqttLogging (Bool bSet) |
| UInt32 | SetTextMode () |
| UInt32 | SetBinaryMode () |
| uint32_t | DisconnectKeepLogging () |
| uint32_t | ReconnectKeepLogging () |
| virtual UInt32 | CheckCommandContext (UInt32 iCommand) |
| When a command is presented to the application, the application needs to check whether the event is legal in the current context. This is a guard-rail function: the application shouldn't create events that don't make sense in a particular context, but Tezzeret is a distributed application, running in at least 2 different devices at one time (the embedded device and a separate UI device such as a tablet or browser), and sometimes things get out of sync. | |
| int | PrepLogSession () |
| int | StartSerialPort (int iUartPortEnum) |
| void | StopLogSession () |
| int | SetupSDStorage (int iSpiEnum, UInt32 uiBitRate) |
| int | SetupUsbStorage (int iUsbEnum) |
| int | AddStorageSensorMode (int iStorageMode, GmEventSource *pSensor, GmStorage *pStorage, UInt32 iFormat, UInt32 iTopic, UInt32 iDownsampleRate, UInt32 iOtherInfo) |
| AddStorageSensorMode : Record the system's intention to handle (usuall to store or send) event and sensor information when in a particular mode. More... | |
| SensorStorageModeInfo * | GetModeSensorLoggingInfo (GmEventSource *psSensor, int iStorageMode) |
| int | WriteSensorToStorageList (GmEventSource *psSensor, SensorStorageModeInfo ssmiStorageList[], char *pData, UInt32 iSize) |
| int | WriteSensorToStorageList (GmEventSource *psSensor, SensorStorageModeInfo ssmiStorageList[], char *pData, UInt32 iSize, std::function< Bool(SensorStorageModeInfo *pInfo)> storageFilter) |
| void | SetSensorId (GmEventSource *psSensor) |
Friends | |
| class | GmWebServer |
| GmWebServer is a special class, with broad access to anything it wants inside Geometrics::TezzeretApp. | |
Additional Inherited Members | |
| Protected Attributes inherited from Geometrics::GmLoggingApp | |
| GmLoggingAppState * | mLoggingAppState = nullptr |
| State information about the application at this level (Geometrics::GmLoggingApp); This state is normally part of a derived application state that also includes state about the final application. | |
| GmStorage * | mSurveyStorage |
| At any particular time, the application has no more than one main local storage, into which survey data is being stored. | |
| GmPpsEventSensor * | mPpsEvents |
| GmAppEventSource * | mAppEvents |
| Every application include AppEvents, which can include such generic functionality as start/stop, as well as any other events that are useful to the application. | |
| CTivaUartOut * | m_uoUartOut |
| CRingBuffer * | mCommandQueue |
| GmManagedArrayRingBuffer< uint8_t, GM_SIZE_OF_APP_DATA_QUEUE > * | mMainEventQueue |
| This is the queue through which almost all events and data in a Tezzeret application pass. When a sensor reads a datum, it places its ID (the sensor's ID) into this queue, from which it is eventually read and handled by the application. | |
| CGmAppConfig * | m_cfgAppSetup |
| struct _GeoMachineProvisioning | m_basicProvisioning |
| Semaphore_Handle | m_shCommandAvailable |
| Semaphore_Handle | m_shCommandQueueAvailable |
| Semaphore_Handle | mAppEventsAvailable |
| int | m_iCountSensorIds |
| Static Protected Attributes inherited from Geometrics::GmLoggingApp | |
| static SensorStorageModeInfo | mStorageModeInfo [GEO_MAX_APP_STORAGE_MODES][GEO_MAX_APP_SENSORS][GEO_MAX_APP_STORAGES] |
| A list of storages x sensors x modes. "Mode" is an application-specific state; Tezzeret isn't really designed as a state machine, but if it were then mode would be the state. Various modes encapsulate such ideas as "dormant mode", "log everything mode", "monitor mode", etc. More... | |
Detailed Description
The top-level application object. It is a singleton, and a Tezzeret application runs in this object's functions. As the top-level object it is allowed to know about any other object in the system. Some of the important information about the application is coded in the immediate base class, Geometrics::GmLoggingApp.
Member Function Documentation
◆ OnMfamPps()
|
static |
Public only because needed for some core APIs. Not normally called by application objects.
The documentation for this class was generated from the following files:
- /home/kddev/dev/TivaWorkspace/TezzeretApps/TezzeretApp.hpp
- /home/kddev/dev/TivaWorkspace/TezzeretApps/AppLogData.cpp
- /home/kddev/dev/TivaWorkspace/TezzeretApps/AppLoggingModes.cpp
- /home/kddev/dev/TivaWorkspace/TezzeretApps/AppStartup.cpp
- /home/kddev/dev/TivaWorkspace/TezzeretApps/GmWebServer.cpp
- /home/kddev/dev/TivaWorkspace/TezzeretApps/TezzeretApp.cpp
